| Name |

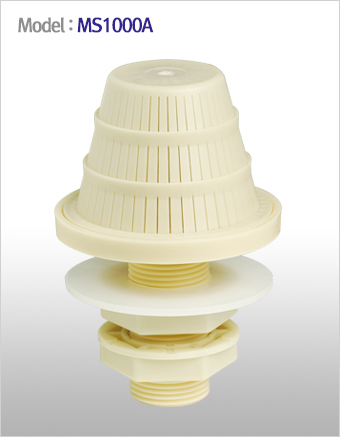

MSS STRAINER for pure water |

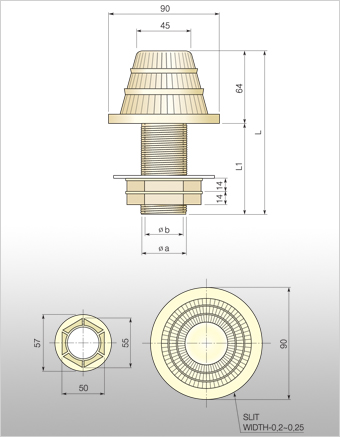

Height |
L-134mm |
| Type |
PARASOL CLOSE TYPE |
L1-70mm |
| Use |
For ion resin |
| Flow rate |
1.2m3/H (1.2 Ton per hour) |
Port
diameters
|
¨Í External diameter 32¨ª
Internal diameter 25¨ª |
Heat deflection
temperature
|
PP 90¡É ~ 100¡É |
¨Î External diameter 26¨ª
Internal diameter 20¨ª |
| ABS 86¡É |
SLIT WIDTH |
0.25mm × 45EA × 3 |
| Materials |
POLYPRO PYLENE (Coprene complex P.P)
ACRYLONITRILE BUTADIENE STYRENE (ABS 740) |
|
|
Test : tank pressure 2K
- When the pressure applied, the flow rate was approx. 1.2m3/H (1.2 Ton per hour).
- Remove foreign substances when insufficient flow rate while using the strainer. |
|
| |
|
