| Name |

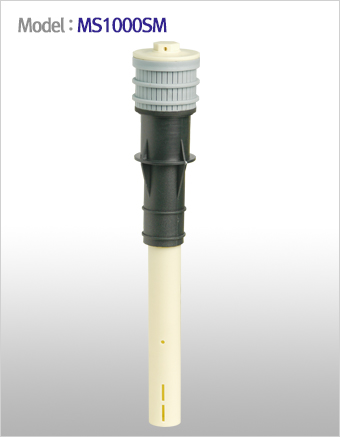

MSS BLOCK TYPE |

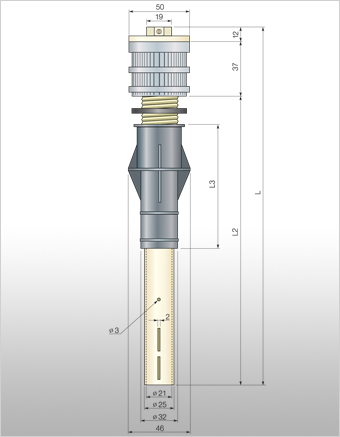

Height |
L-295mm |
| Type |
Water to Air |
L2-246mm |
| Use |
Clean water and filtering |
SLEEVE |
L3-100mm |
| Flow rate |
0.6m3/H (0.6 Ton per hour) |
Port
diameters |
External diameter 32Ø
Internal diameter 21Ø
External diameter 25Ø
Internal diameter 15Ø |
Heat deflection
temperature |
PP 90กษ ~ 100กษ |
| ABS 86กษ |
SLIT WIDTH |
0.5mm × 36EA × 3 |
| Materials |
POLYPRO PYLENE (Coprene complex P.P)
ACRYLONITRILE BUTADIENE STYRENE (ABS 740) |
|
|
| - Remove foreign substances when insufficient flow rate while using the strainer. |
|
| |
|
