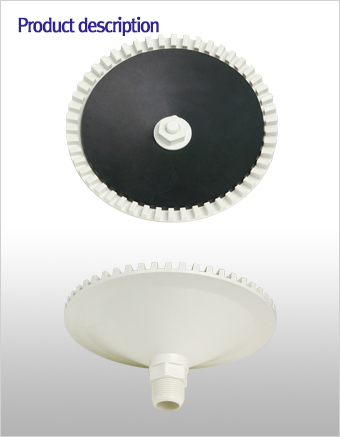

| Name |
MSS 190L DIFFUSER |

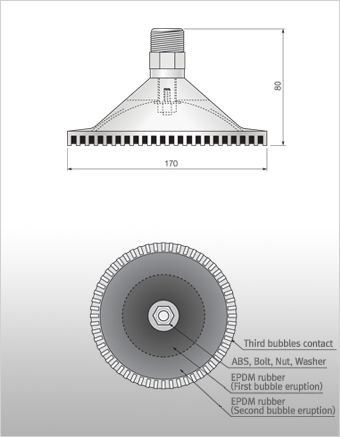

Height |
80mm |
| Type |
DISC DIFFUSER - 190L new model |
Port
diameters |
PT-3 / 4B, 20A |
| Quantity of airflow |
100งค/min ~ 150งค/min |
Materials |
ABS resin, EPDM rubber, Thickness 5mm |
| Pressure loss |
150mmAq |
Temperature |
50กษ ~ 60กษ |
| Interval |
300 ~ 400mm Center |
Water level |
Max. 50m (50kg/cm3) |
Attaching
directions
|
Flexible to install anywhere :
bottom, top, left, right |
Use |
Oxygen supply, Waste water treatment,
Night soil treatment, Domestic sewage,
Livestock, Dyeing,
Other harmful waste water |
| Oxygen transfer efficiency |
7.5% at water level 4m (see the graph) |
| Soluble coral percentage |
See the graph |
Backdraft prevention |
Diffuser equipped with double EPDM device
New diffuser model of Triplet Impinging type |
| Eruption hole diamter |
170mm |
|
|
Feature
- High concentration microorganism oxidation(MLSS 6000 P.P.M) available.
- Best features include high concentration soluble oxygen percentage and dynamic agitation.
- No cleaning neede through 1-time installation.
- Low price. |
|
| |
|
