| Name |

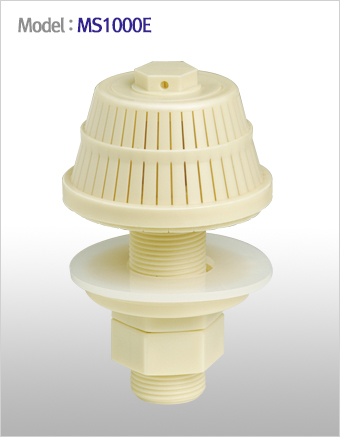

MSS SL2, SL5 Separable type |

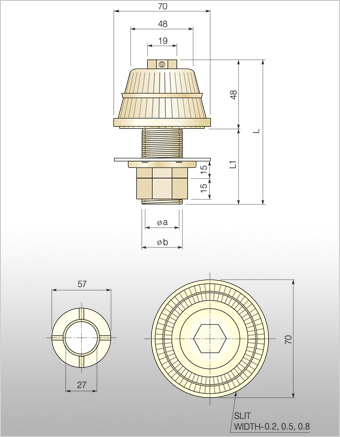

Height |
L-118mm, 128mm |
| Type |
PARASOL CLOSE TYPE |
L1-70mm, 80mm |
| Use |
Purifying and filtering of ion resin |
| Flow rate |
0.6m3/H (0.6 Ton per hour) SL2
1.0m3/H (1.0 Ton per hour) SL5
1.5m3/H (1.5 Ton per hour) SL8 |
Port
diameters |
¨Í External diameter 26Ø
Internal diameter 18Ø |
Heat deflection
temperature |
PP 90¡É ~ 100¡É |
¨Î External diameter 32 Ø
Internal diameter 24Ø |
| ABS 86¡É |
SLIT WIDTH |
0.2mm, 0.5mm × 40EA × 2
0.8mm × 36EA × 2 |
| Materials |
POLYPRO PYLENE (Coprene complex P.P)
ACRYLONITRILE BUTADIENE STYRENE (ABS 740) |
|
|
Test : tank pressure 2K
- When the pressure applied, the flow rates were SL2 : 0.6m3/H (0.6 Ton per hour), SL5 : 1.0m3/H (1.0 Ton per hour),
and SL8 : 1.5 m3/H (1.5 Ton per hour).
- Remove foreign substances when insufficient flow rate while using the strainer. |
|
| |
|
