| Name |

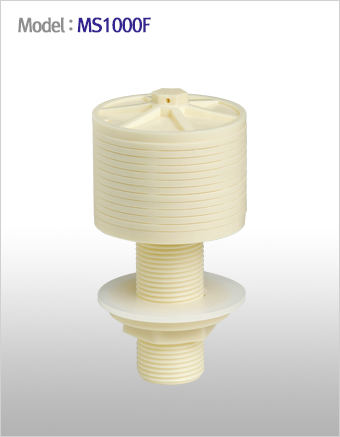

MSS DISC separable type |

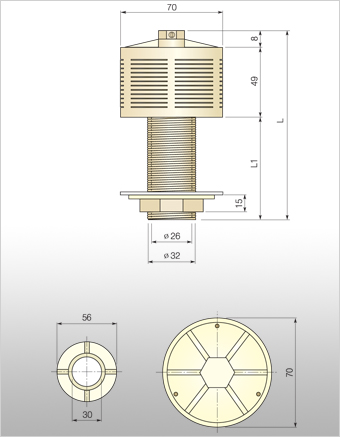

Height |
L-132mm |
| Type |
TUBE TYPE |
L1-70mm |
| Use |
Clean water and filtering of ion resin |
| Flow rate |
0.6m3/H (0.6 Ton per hour) SF0.25
1.0m3/H (1.0 Ton per hour) SL0.5 |
Port
diameters |
External diameter 32Ø
Internal diameter 26Ø |
Heat deflection
temperature |
PP 90กษ ~ 100กษ ABS 86กษ |
| SLIT WIDTH |
0.25mm
0.5mm |
| Materials |
POLYPRO PYLENE (Coprene complex P.P)
ACRYLONITRILE BUTADIENE STYRENE (ABS 740) |
|
|
Test : tank pressure 2K
- When the pressure applied, the flow rates were SF0.25 : 0.6m3/H (0.6 Ton per hour), SF0.5 : 1.0m3/H (1.0 Ton per hour).
- Remove foreign substances when insufficient flow rate while using the strainer. |
|
| |
|
