| Name |
Block type |

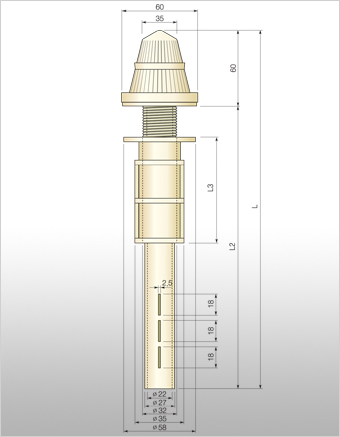

Height |
L-300mm |
| Type |
Water to air |
L2-240mm |
| Use |
Filtering of clean water |
SLEEVE |
L3-100mm |
| Flow rate |
1.5m3/H (1.5 Ton per hour) |
Port diameters |
External diameter 32Ø
Internal diameter 22Ø |
Heat deflection
temperature |
ABS 86กษ |
| SLIT WIDTH |
0.8mm × 40EA × 2 |
| Materials |
ACRYLONITRILE BUTADIENE STYRENE (ABS 740) |
|
|
| - Remove foreign substances when insufficient flow rate while using the strainer. |
|
| |
|
