| Name |

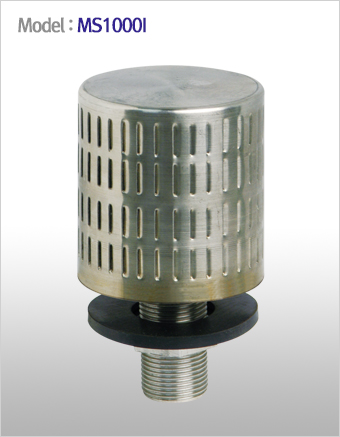

MSS SUS STRAINER |

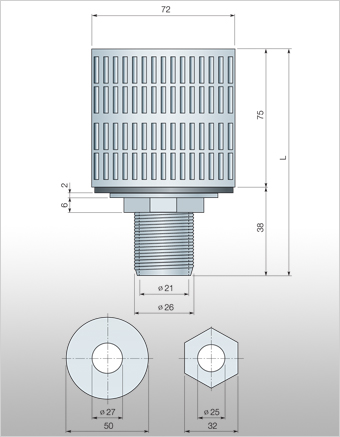

Height |
L-113mm |
| Type |
Tube type |
Diameter |
72mm |
| Use |
Filtering of clean water |
Weight |
250g (Nut Gasket inclusion) |
| Flow rate |
2.0m3/H (2.0 Ton per hour) |
Port diameters |
External diameter 26Ø
Internal diameter 21Ø |
| Materials |
SUS304 |
SLIT WIDTH |
0.25 - 0.3mm × 38 × 4 |
|
|
Test : tank pressure 2K
- When the pressure applied, the flow rate was 2.0m3/H (2.0 Ton per hour).
- Remove foreign substances when insufficient flow rate while using the strainer. |
|
| |
|
