| Name |
MSS SUS STRAINER |
Height |
L-116mm |
| Type |
Tube type |
Diameter |
56mm |
| Use |
Purifying and filtering of ion resin |
Weight |
300g |
| Flow rate |
1.5m3/H (1.5 Ton per hour) |
Port diameters |
External diameter 26Ø
Internal diameter 20Ø |
| Materials |
SUS304 |
SLOT |
0.2, 0.5, 0.8 |
|
|
|

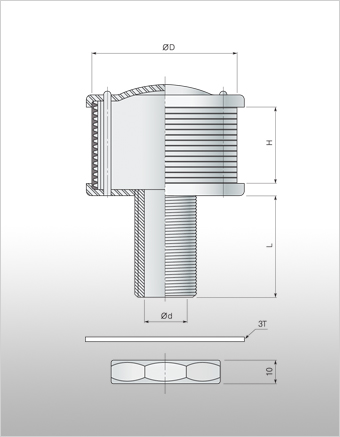

| MODEL |
SLOT |
¨ĒD |
H |
L |
Ød |

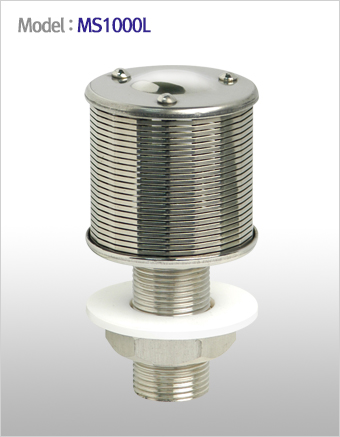

| MS1000L |
0.2, 0.5, 0.8 |
56 |
45 |
50 |
20 |
|
|
- Resolving irrationality in damage on the existing strainer(ABS, PP) and forming accurate slots improve pressure loss
and filtering effect through even filtering and back wash.
- Slots are adjustable according to the specifications. |
|
| |
|
