| Name |
MSS Injection type |
Height |
L-68mm |
| Type |
PARASOL CLOSE TYPE |
Diameter |
70mm |
| Use |
Clean water and filtering |
| Flow rate |
1.0m3/H (1.0 Ton per hour) SL5
1.5m3/H (1.5 Ton per hour) SL8 |
Port
diameters |
External diameter 26¨ª |
Heat deflection
temperature |
PP 90¡É ~ 100¡É |

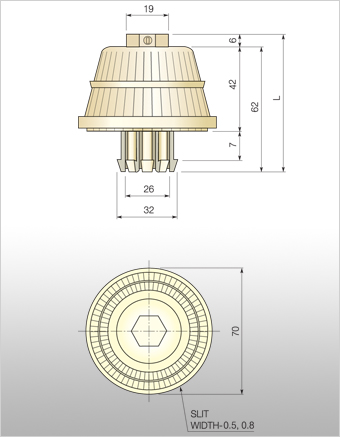

| SLIT WIDTH |
0.5mm × 40EA × 2
0.8mm × 36EA × 2 |
| Materials |
POLYPRO PYLENE (Coprene complex P.P) |
|
|
Test : tank pressure 2K
- When the pressure applied, the flow rates were SL5 : 1.0m3/H (1.0 Ton per hour), SL8 : 1.5m3/H (1.5 Ton per hour).
- Remove foreign substances when insufficient flow rate while using the strainer. |
|
| |
|
