| Name |

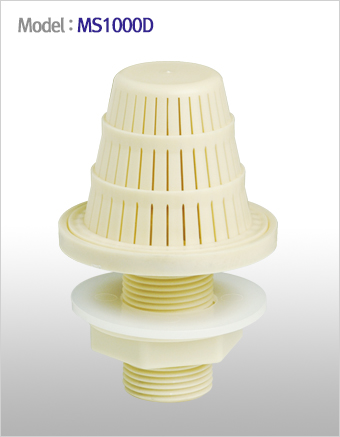

MSS STRAINER for filter |

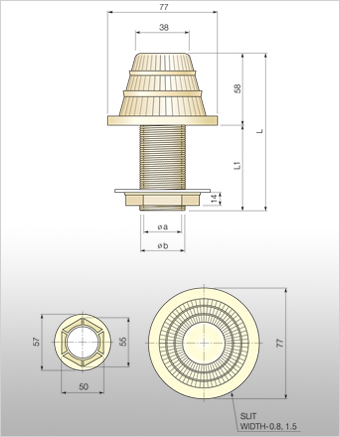

Height |
L-113mm |
| Type |
PARASOL CLOSE TYPE |
L1-55mm |
| Use |
For filter |
| Flow rate |
1.5m3/H (1.5 Ton per hour)
2.0m3/H (2.0 Ton per hour) |
Port
diameters |
¨Í External diameter 26Ø
Internal diameter 20Ø |
Heat deflection
temperature |
PP 90¡É ~ 100¡É |
¨Î External diameter 32 Ø
Internal diameter 25Ø |
| ABS 86¡É |
SLIT WIDTH |
0.8mm × 32EA × 3
1.5mm × 32EA × 3 |
| Materials |
POLYPRO PYLENE (Coprene complex P.P)
ACRYLONITRILE BUTADIENE STYRENE (ABS 740) |
|
|
Test : tank pressure 2K
- When the pressure applied, the flow rates were approx. 1.5m3/H (1.5 Ton per hour) and 2.0m3/H (2.0 Ton per hour).
- Remove foreign substances when insufficient flow rate while using the strainer. |
|
| |
|
