| Name |

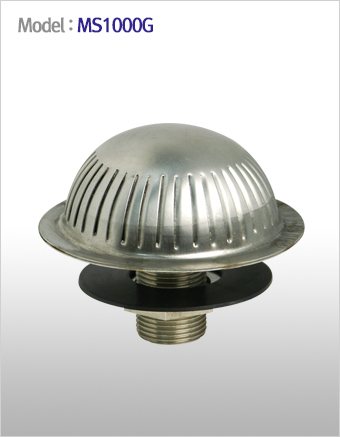

MSS SUS STRAINER |

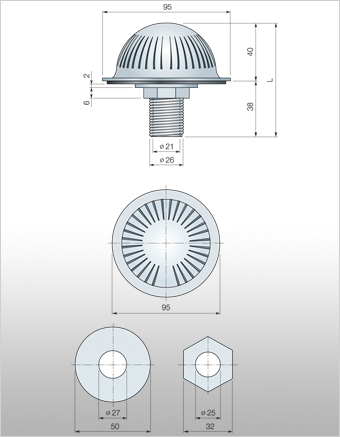

Height |
L-78mm |
| Type |
Dome type |
Diameter |
95mm |
| Use |
Filtering of clean water |
Weight |
183g (Nut Gasket inclusion) |
| Flow rate |
0.6m3/H (0.6 Ton per hour) |
Port diameters |
External diameter 26Ø
Internal diameter 21Ø |
| Materials |
SUS304 |
SLIT WIDTH |
0.3mm × 38 |
|
|
Test : tank pressure 2K
- When the pressure applied, the flow rate was 0.6m3/H (0.6 Ton per hour).
- Remove foreign substances when insufficient flow rate while using the strainer. |
|
| |
|
