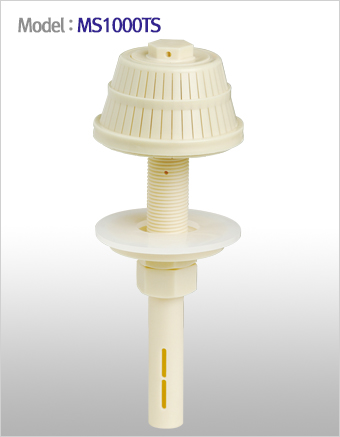

| Name |
MSS separable water to air type |

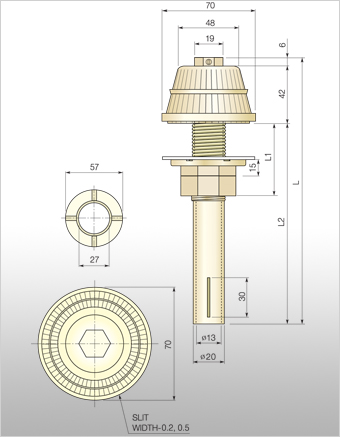

Height |
L-188mm |
| Type |
PARASOL CLOSE TYPE |
L1-70mm |
| Use |
Purifying and filtering of ion resin |
L2-140mm |
| Flow rate |
0.5m3/H (0.5 Ton per hour) SL2
0.8m3/H (0.8 Ton per hour) SL5 |
Port
diameters |
External diameter 20Ø
Internal diameter 13Ø |
Heat deflection
temperature |
PP 90กษ ~ 100กษ |
| ABS 86กษ |
SLIT WIDTH |
0.2mm, 0.5mm × 40EA × 2 |
| Materials |
POLYPRO PYLENE (Coprene complex P.P)
ACRYLONITRILE BUTADIENE STYRENE (ABS 740) |
|
|
Test : tank pressure 2K
- When the pressure applied, the flow rates were SL2 : 0.5m3/H (0.5 Ton per hour), SL5 : 0.8m3/H (0.8 Ton per hour).
- Remove foreign substances when insufficient flow rate while using the strainer. |
|
| |
|
