| Name |

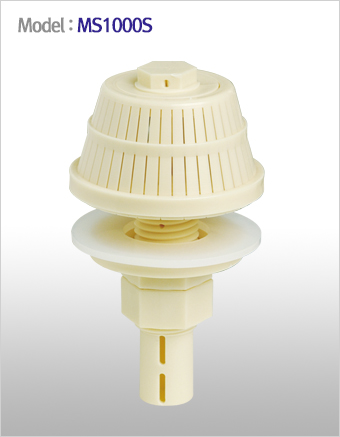

MSS separable water to air type |

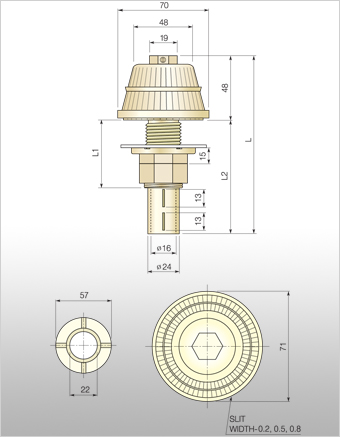

Height |
L-128mm |
| Type |
PARASOL CLOSE TYPE |
L1-50mm |
| Use |
Purifying and filtering of ion resin |
L2-80mm |
| Flow rate |
0.6m3/H (0.6 Ton per hour) SL0.2
1.0m3/H (1.0 Ton per hour) SL0.5
1.5m3/H (1.5 Ton per hour) SL0.8 |
Port
diameters |
External diameter 24Ø
Internal diameter 16Ø |
Heat deflection
temperature |
PP 90กษ ~ 100กษ |
| ABS 86กษ |
SLIT WIDTH |
0.2mm, 0.5mm × 40EA × 2
0.8mm × 38EA × 2 |
| Materials |
POLYPRO PYLENE (Coprene complex P.P)
ACRYLONITRILE BUTADIENE STYRENE (ABS 740) |
|
|
Test : tank pressure 2K
- When the pressure applied, the flow rates were SL0.2 : 0.6m3/H (0.6 Ton per hour), SL0.5 : 1.0m3/H (1.0 Ton per hour),
and SL0.8 : 1.5 m3/H (1.5 Ton per hour).
- Remove foreign substances when insufficient flow rate while using the strainer. |
|
| |
|
