| Name |

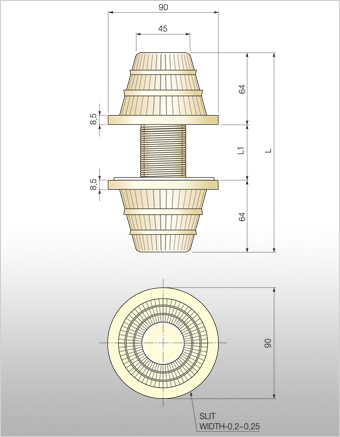

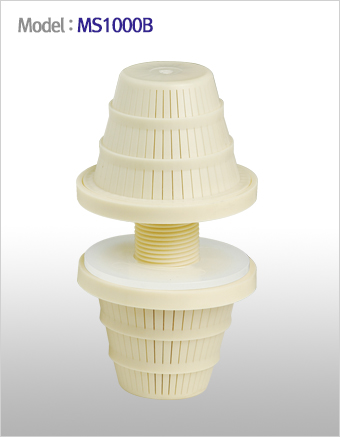

MSS W strainer for pure water |
Height |
L-140 ~ 170mm |
| Type |
PARASOL CLOSE TYPE |
L1-50mm |
| Use |
For ion resin |
| Flow rate |
1.2m3/H (1.2 Ton per hour) |
Port
diameters |
External diameter 32Ø
Internal diameter 25Ø |
Heat deflection
temperature |
PP 90กษ ~ 100กษ |
| ABS 86กษ |
SLIT WIDTH |
0.25mm(Double) × 45EA × 3 |
| Materials |
POLYPRO PYLENE (Coprene complex P.P)
ACRYLONITRILE BUTADIENE STYRENE (ABS 740) |
|
|
Test : tank pressure 2K
- When the pressure applied, the flow rate was 1.2m3/H (1.2 Ton).
- Remove foreign substances when insufficient flow rate while using the strainer. |
|
| |
|
